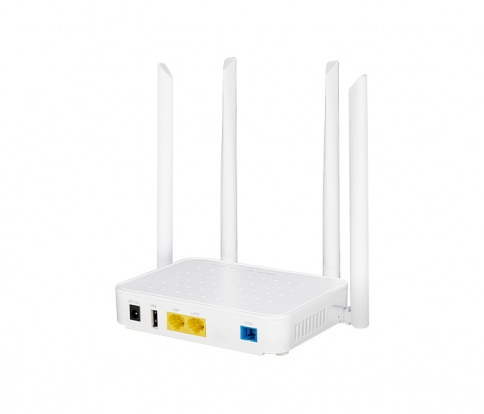

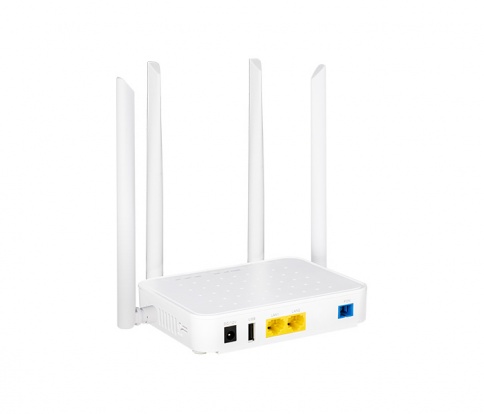

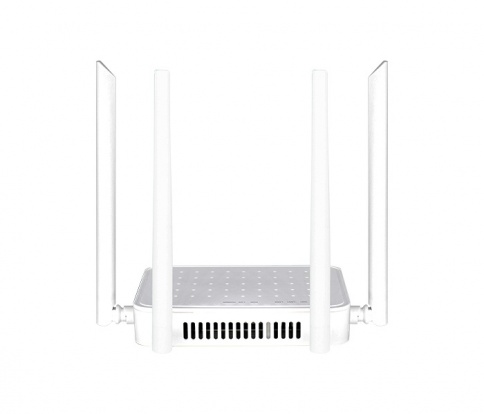

BDCOM GP1705-2G is an xPON (GPON/EPON) type ONU/HGU device that combines an optical modem, router, and Wi-Fi in a single unit. It is equipped with 802.11ac Wi-Fi technology and operates on both 2.4 GHz and 5 GHz frequencies.
Interfaces:
PON Port: 1 x SC/UPC
LAN Ports: 2 x GE TX (1 GbE Ethernet)
USB: 1 x USB port
WIFI: ~1200 Mbps
Receiver Sensitivity: <-28 dBm
Transmit Power: 0.5~5 dBm
Standards:
ITU-T G.984/G.988
· IEEE802.3ah
· GBT33845-2017, YD/T 1475-2006
· IEEE 802.1Q, VLAN
· ITU-T Y.1291
VLAN:
· 4K VLAN
· Port based VLAN
· IEEE 802.1Q VLAN
· Tag/Transparent/Aggregation
/Trunk/Translation mode VLAN
· CTC2.0 defined VLAN
IP Services:
· DHCP server/client
· Routing/Bridging/Hybrid mode
· DNS, DDNS
· PPPOE
· NAT/NAP
xPON Services:
· AES128 algorithm encryption
· MAC/Loid/Hybrid authentication
QoS:
· Backpressure flow control
(half-duplex)
· IEEE 802.3x flow control (full duplex)
· Against Head of Line mechanism
· IEEE 802.1p, CoS
· Four priority queues on each port
· WR, SP and FIFO queue schedule
algorithms
· Port rate limit
· SLA and DBA
Reliability:
· Management modes including
CLI, HTTP, SNMP, TR069 and
TELNET.
· Software upgrade through
TFTP and WEB, OMCI, etc.
· Local or server syslog.
· Loop detection
· Dying-Gasp
· TX/RX optical power alarm
Network Security:
· MAC address number limit
· MAC filter
· Port protect
Multicast:
· IGMP-Snooping
· CTC defined dynamic
multicast function
· MLD-Snooping
· Multicast group limitation
· Multicast fast-leave
Wireless:
· 802.11a/b/g/n/ac
· 2x2 MIMO
· Multi SSID
· SSID encryption
· Wireless channel
(configurable)
Max Power Consumption: 15W
Operating Temperature: 0℃ - 45℃
Storage Temperature: -40℃ - 85℃
Relative Humidity: 10～85% (non-condensing)
Dimensions: 140 x 105 x 30 mm
Weight: 0.3 kg
